Products / EMC / EMI FERRITE CORE / SOLID CORES FOR FLAT CABLES ( SSC Series )

EMI FERRITE

SOLID FERRITE CORES FOR FLAT CABLES ( SSC Series )

Features

  • High performance Nickel-Zinc ferrite cores for effective common mode EMI suppression on flat cable data lines.
  • Original clip holders with various mounting options insure convenient positioning of the cores and prevent the ferrites from sliding along the cables.
  • Customized sizes available.



Specifications

  • Easy installation before the final assembly on flat cables in various applications on interface/data lines for the suppression of radiated emissions and full compliance with the international EMC regulations for electronic equipment.



Ferrite Core for Flat Cables


Unit: mm (inch)
Part No.
A
B
C
D
E
SSC-33.5-8
33.5
(1.319)
27.0 +0.7 -0.4
(1.063 +0.028 -0.016)
8
(0.315)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-33.5-10
33.5
(1.319)
27.0 +0.7 -0.4
(1.063 +0.028 -0.016)
10
(0.394)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-33.5-12
33.5
(1.319)
28.4±0.4
(1.118±0.015)
12
(0.472)
1.4 ±0.2
(0.055±0.008)
6.5
(0.256)
SSC-33.5-10-2
33.5
(1.319)
27.0 +0.7 -0.4
(1.063 +0.028 -0.016)
10
(0.394)
2.2±0.2
(0.087±0.012)
7.4
(0.291)
SSC-33.5-20
33.5
(1.319)
27.0 +0.7 -0.4
(1.063 +0.028 -0.016)
20
(0.787)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-40-10
40
(1.575)
34.8±0.7
(1.37±0.028)
10
(0.394)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-40-12
40
(1.575)
34.9±0.4
(1.373±0.015)
12
(0.472)
1.4 ±0.2
(0.055±0.008)
6.5
(0.256)
SSC-45-8
45.0
(1.771)
40±0.7
(1.575±0.028)
8
(0.315)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-45-12
45.0
(1.771)
39.9±0.5
(1.570±0.020)
12
(0.472)
1.4 ±0.3
(0.055±0.012)
6.5
(0.256)
SSC-50-12
50.0
(1.953)
44.9
(1.767±0.015)
12
(0.472)
1.4 ±0.2
(0.055±0.008)
6.5
(0.256)
SSC-58-12
57.6
(1.968)
52
(2.047±0.028)
12
(0.472)
1.3 +0.3 -1
(0.051 +0.012 -0.040)
6.5
(0.256)
SSC-60-12
60.6
(2.385)
54.8
(2.157±0.028)
12
(0.472)
1.3 ±0.15
(0.051 ±0.006)
6.5
(0.256)




Impedance(Ω)
Applicable cable
Part No.
100MHz
SSC-33.5-8
30+
MAX 26(1.024) wide
SSC-33.5-10
35+
MAX 26(1.024) wide
SSC-33.5-12
40+
MAX 26(1.024) wide
SSC-33.5-10-2
30+
MAX 26(1.024) wide
SSC-33.5-20
60+
MAX 26(1.024) wide
SSC-40-10
35+
MAX 34(1.339) wide
SSC-40-12
45+
MAX 34(1.339) wide
SSC-45-8
30+
MAX 39(1.535) wide
SSC-45-12
45+
MAX 39(1.535) wide
SSC-50-12
45+
MAX 43(1.693) wide
SSC-58-12
40+
MAX 51(2.008) wide
SSC-60-12
90+
-

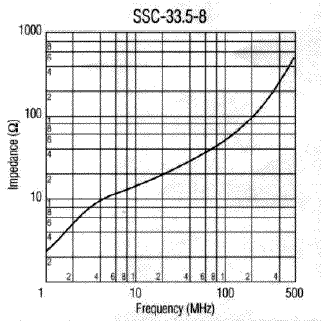

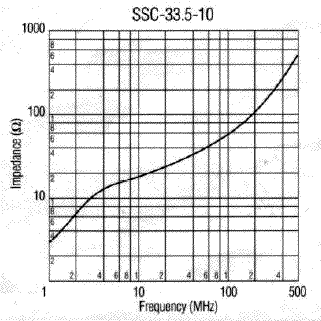

Impedance vs. Frequency Graphs





RoHS All of our products are RoHS Compliant
